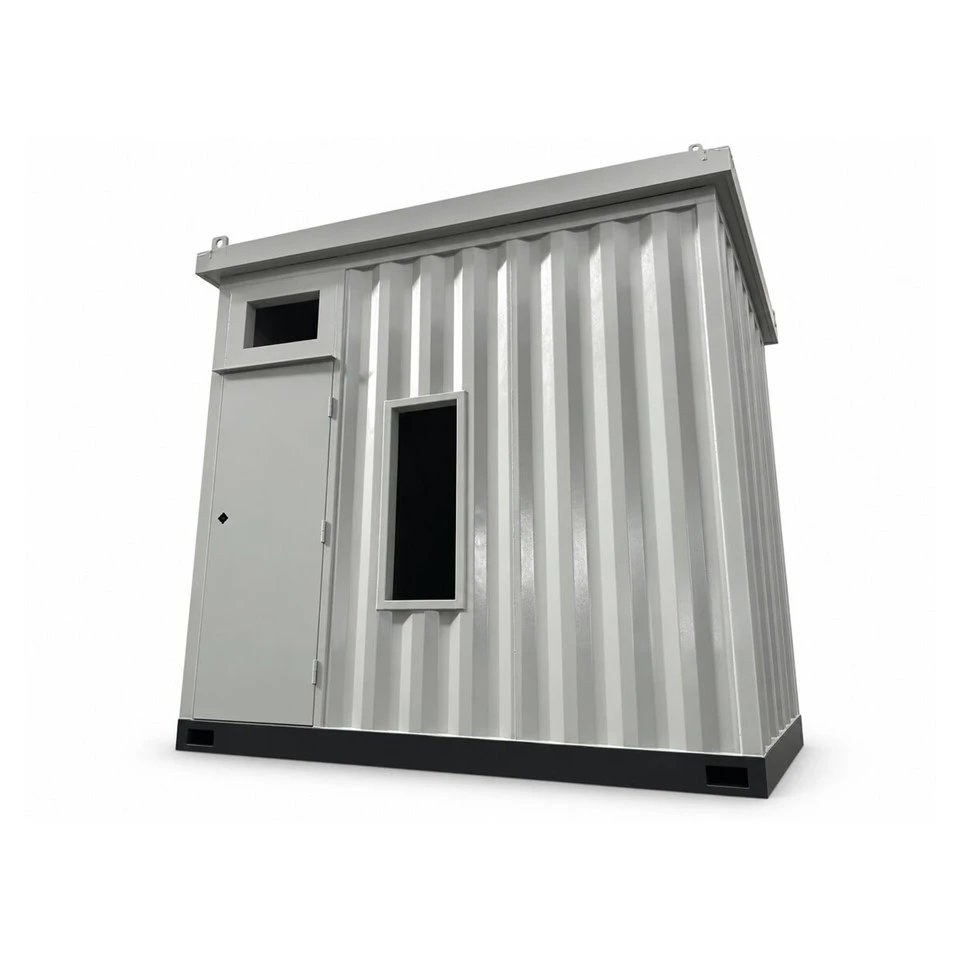

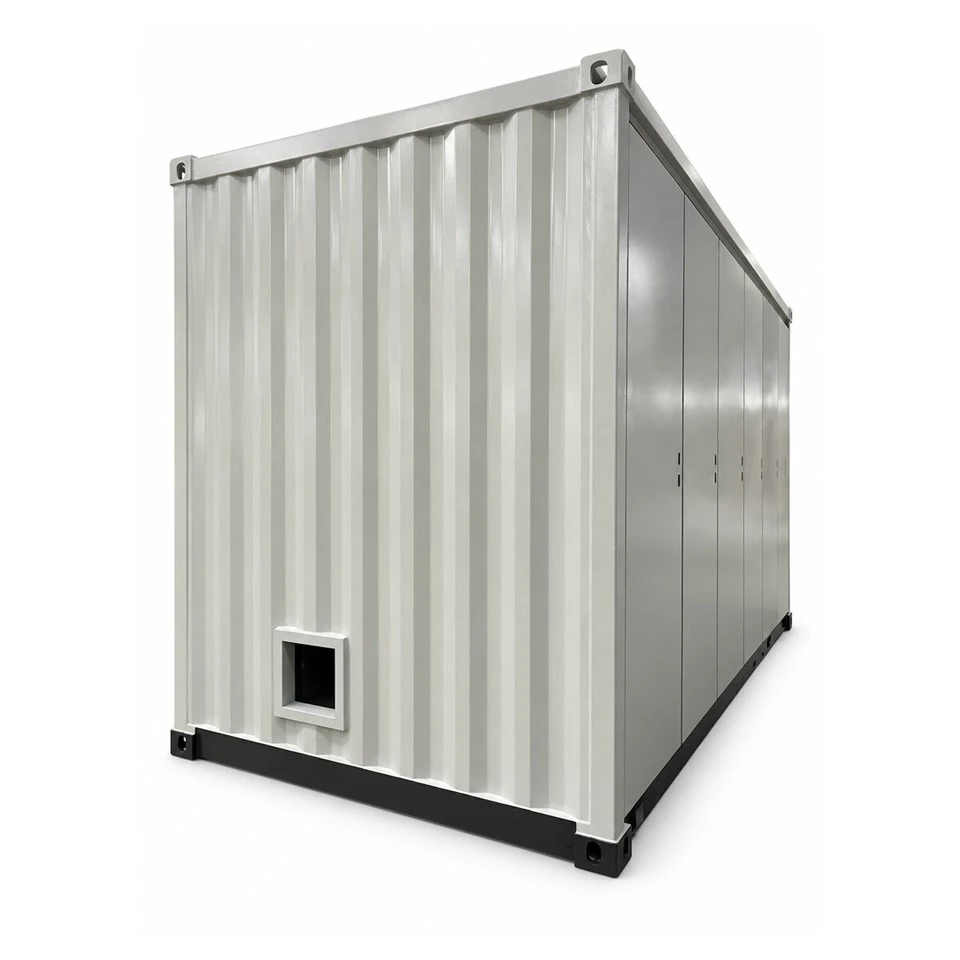

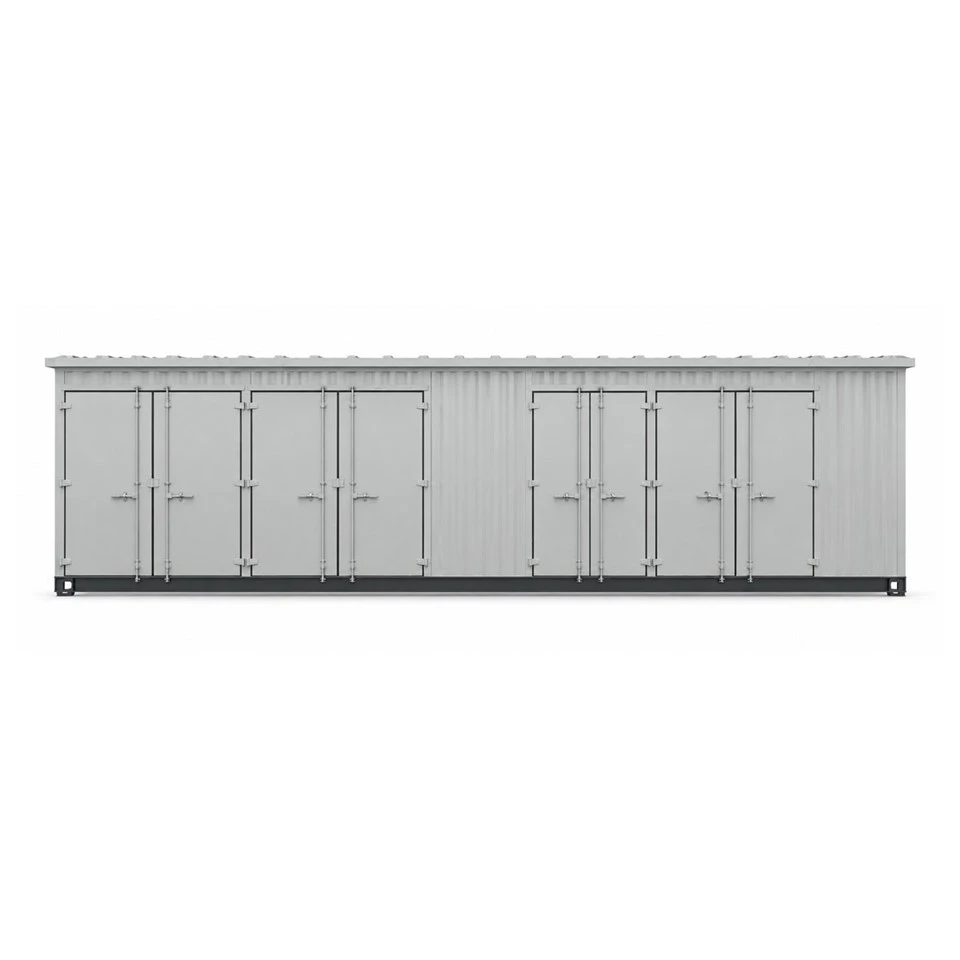

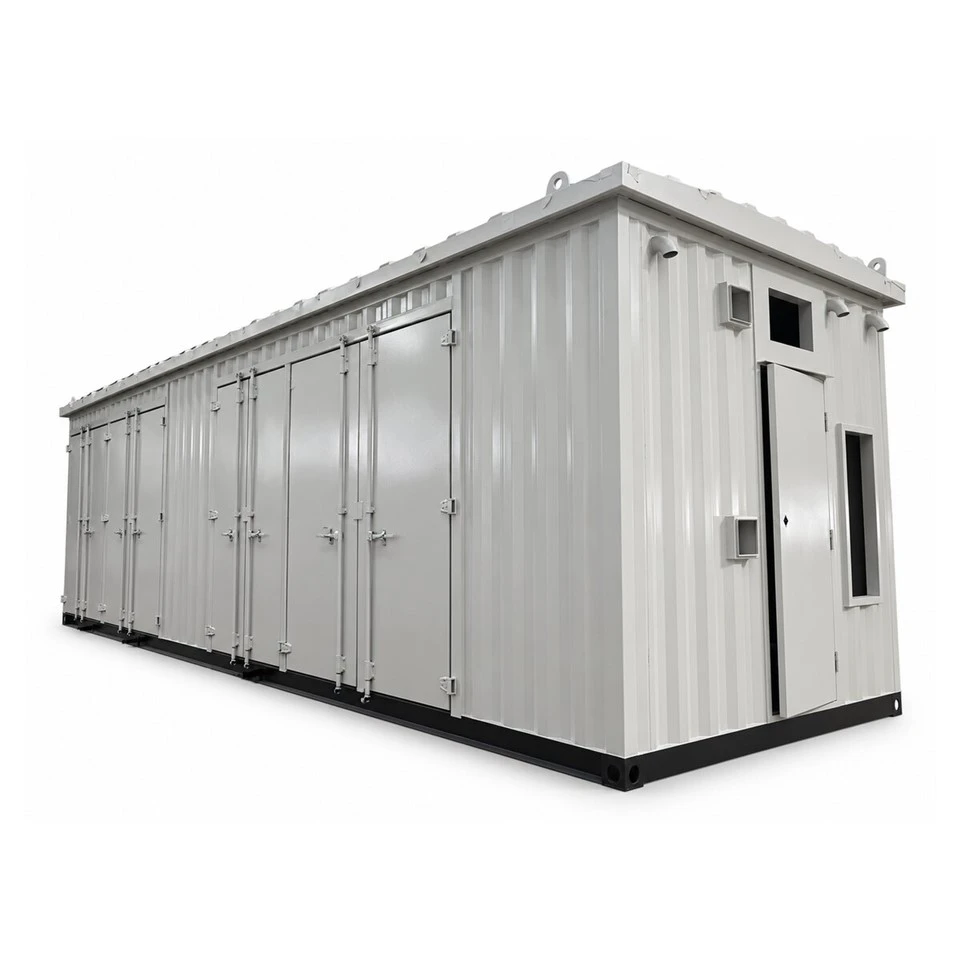

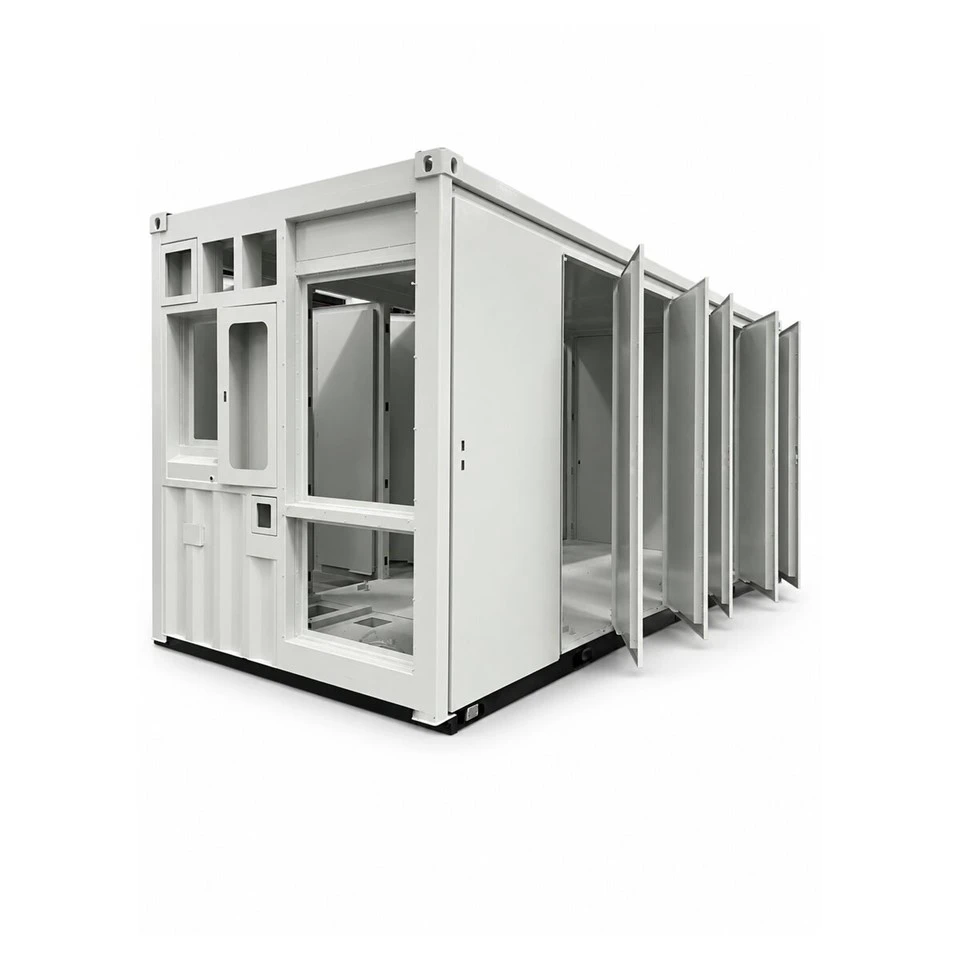

Custom E-House Enclosure
Strong Structure: Reinforced welded frame and base.
Flexible Design: Custom doors, openings and equipment supports.
Waterproof Testing: Available according to project requirements.
Corrosion Protection: C3–C5 coating options available.
Fast Production: Production starts from 15 days.
Steel Enclosure for Prefabricated Electrical Systems
A custom E-House enclosure provides a protected steel structure in which electrical equipment can be installed, connected and maintained.
Compared with a standard electrical cabinet, an E-House enclosure has a larger structural frame, reinforced base, multiple equipment doors and project-specific installation interfaces. It can accommodate switchgear, control panels, protection systems and other power equipment.
Zhihe supplies E-House enclosures to:
- Transformer manufacturers
- Switchgear manufacturers
- Electrical system integrators
- EPC contractors
- Renewable energy equipment suppliers
- Industrial power solution providers
Our standard scope covers the fabricated steel enclosure and specified sheet-metal structures. Internal electrical equipment is not included.
Manufactured According to Your Drawings
E-House enclosures are not standard off-the-shelf products. Equipment dimensions, cable routes, access requirements and installation environments differ from project to project.
Zhihe manufactures each enclosure according to approved GA and fabrication drawings.
Waterproof Testing
Outdoor E-House enclosures must reduce the risk of water entering through doors, joints, roof structures and other interfaces.
Water ingress testing is available according to the confirmed project requirements. During testing, attention is paid to areas such as:
- Door frames
- Sealing strips
- Roof joints
- Panel connections
- Ventilation openings
- External interface openings
Any required test method, duration, inspection criteria or third-party certification must be confirmed before quotation.
Waterproof testing does not automatically mean that every enclosure is IP54 certified. If the project requires an IP rating, the applicable standard and certification requirements should be specified separately.
Corrosion Protection
The surface-treatment system can be selected according to the installation environment.
Available options include:
- Surface cleaning
- Sandblasting
- Zinc-rich primer
- Intermediate coating
- Liquid topcoat
- Powder coating
- Customized RAL colors
- C3–C5 coating systems
For coastal, humid, high-salinity or industrial environments, customers should provide the corrosion category, coating structure and required dry-film thickness.
Quality Management and Inspection
Zhihe manufactures E-House enclosures under an ISO 9001:2015 certified quality management system.
Inspection items may include:
- Material verification
- Plate-thickness measurement
- Weld appearance inspection
- Structural alignment checks
- Overall dimensional inspection
- Door opening and closing checks
- Opening-position verification
- Equipment-support inspection
- Coating appearance inspection
- Dry-film thickness measurement
- Water ingress testing
- Final conformity with approved drawings
- Packing inspection
Project-specific inspection requirements should be confirmed before production.
Typical Specifications
| Item | Specification |
|---|---|
| Overall Dimensions | Customized according to drawings |
| Material | Carbon steel or specified sheet material |
| Plate Thickness | Customized according to structural requirements |
| Structure | Welded steel frame with reinforced base |
| Door and Openings | Customized for equipment installation and cable entry |
| Corrosion Protection | C3–C5 coating options |
| Surface Finish | Painting or powder coating in customized RAL colors |
| Testing | Dimensional inspection and waterproof testing available |
All specifications are customizable and subject to the approved project drawings.
Information Required for Quotation
Please provide:
- GA and fabrication drawings
- Overall enclosure dimensions
- Material grade and plate thickness
- Internal equipment layout
- Equipment dimensions and weights
- Base-frame loading requirements
- Door and access requirements
- Cable, ventilation and HVAC openings
- Required waterproof or IP testing
- Coating system and corrosion category
- RAL color
- Quantity and destination
A quotation can normally be prepared within two working days after receiving complete drawings and specifications.
Production normally starts from approximately 15 days after drawing approval and technical confirmation. Final lead time depends on the structure, dimensions, coating system and order quantity.
Send Us Your E-House Enclosure Drawings
Send your GA drawing, equipment layout, loading information and coating requirements. Our team will review the manufacturing details and prepare a project-specific quotation.
Send Your Drawings
Request a Quote
